RE-Two-piece Inner Ring Type

Description:

THK Series RE

Model RE (Two-piece Inner Ring Type for Outer Ring Rotation)

LYNBC Crossed Roller Bearings RE series (THK corresponding to RE series) is two-piece inner ring type for outer ring rotation, It is the new structure from THK RB design. Main dimensions are the same as model RB. With two-piece inner ring, and a outer ring integrated. It is used in locations where the rotational accuracy of the outer ring is required.

▲ The design’s of all these Crossed Roller Bearings RE series are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters

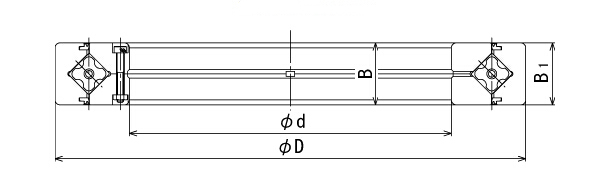

日本THK RE 图纸.jpg

Designation	Boundary Dimensions(mm)				Basic Load ratings(KN)		Weight (kg)
Designation	d	D	B1	rsmin	Cr	Cor	Weight (kg)
RE2008	20	36	8	0.5	3.23	3.1	0.04
RE2508	25	41	8	0.5	3.63	3.83	0.05
RE3010	30	55	10	0.6	7.35	8.36	0.12
RE3510	35	60	10	0.6	7.64	9.12	0.13
RE4010	40	65	10	0.6	8.33	10.6	0.15
RE4510	45	70	10	0.6	8.62	11.3	0.17
RE5013	50	80	13	0.6	16.7	20.9	0.29
RE6013	60	90	13	0.6	18	24.3	0.33
RE7013	70	100	13	0.6	19.4	27.7	0.38
RE8016	80	120	16	0.6	30.1	42.1	0.74
RE9016	90	130	16	1	31.4	45.3	0.81
RE10016	100	140	16	1	31.7	48.6	0.83
RE10020	100	150	20	1	33.1	50.9	1.45
RE11012	110	135	12	0.6	12.5	24.1	0.4
RE11015	110	145	15	0.6	23.7	41.5	0.75
RE11020	110	160	20	1	34	54	1.56
RE12016	120	150	16	0.6	24.2	43.2	0.72
RE12025	120	180	25	1.5	66.9	100	2.62
RE13015	130	160	15	0.6	25	46.7	0.72
RE13025	130	190	25	1.5	69.5	107	2.82
RE14016	140	175	16	1	25.9	50.1	1
RE14025	140	200	25	1.5	74.8	121	2.96
RE15013	150	180	13	0.6	27	53.5	0.68
RE15025	150	210	25	1.5	76.8	128	3.16
RE15030	150	230	30	1.5	100	156	5.3
RE16025	160	220	25	1.5	81.7	135	3.14
RE17020	170	220	20	1.5	29	62.1	2.21
RE18025	180	240	25	1.5	84	143	3.44
RE19025	190	240	25	1	41.7	82.9	2.99
RE20025	200	260	25	2	84.2	157	4
RE20030	200	280	30	2	114	200	6.7
RE20035	200	295	35	2	151	252	9.58
RE22025	220	280	25	2	92.3	171	4.1
RE24025	240	300	25	2.5	68.3	145	4.5
RE25025	250	310	25	2.5	69.3	150	4.97
RE25030	250	330	30	2.5	126	244	8.1
RE25040	250	355	40	2.5	195	348	14.8
RE30025	300	360	25	2.5	76.3	178	5.88
RE30035	300	395	35	2.5	183	367	13.4
RE30040	300	405	40	2.5	212	409	17.2
RE35020	350	400	20	2.5	54.1	143	3.9
RE40035	400	480	35	2.5	156	370	14.5
RE40040	400	510	40	2.5	241	531	23.5
RE45025	450	500	25	1	61.7	182	6.6
RE50025	500	550	25	1	65.5	201	7.3
RE50040	500	600	40	2.5	239	607	26
RE50050	500	625	50	2.5	267	653	41.7
RE60040	600	700	40	3	264	721	30.6
Designation	d	D	B1	rsmin	Cr	Cor	Weight (kg)
Designation	Boundary Dimensions(mm)				Basic Load ratings(KN)		Weight (kg)
