INA High Precision Series SX Crossed Roller Bearings

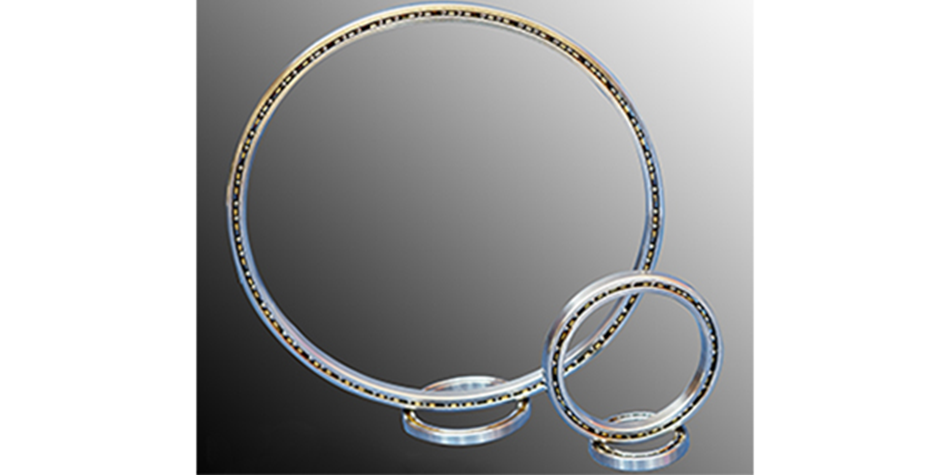

LYNBC Crossed roller bearing, SX series(INA corresponding to SX series) designed by outer ring split in a circumferential direction and held together by three retaining rings and with no seals, have normal clearance or are preloaded, are fixed to the adjacent construction using clamping rings, are suitable with normal clearance for circumferential speeds, are preloaded and suitable, with oil lubrication, for circumferential speeds up to 4m/s and for operating temperatures from -30℃ to +80℃.
▲ The design’s of all these Crossed Roller Bearings SX series are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.
Parameters
Designation | Boundary Dimensions(mm) | Basic Load ratings(KN) | Weight (kg) | ||||

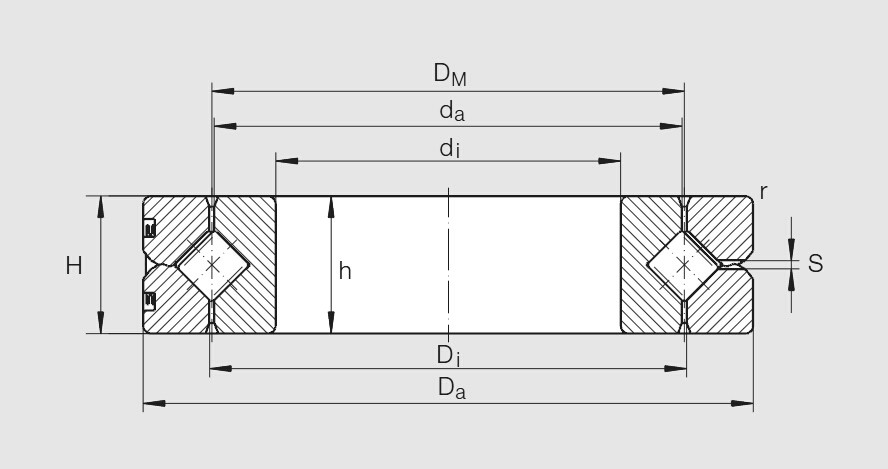

di | Da | H | rsmin | Cr | Cor | ||
SX 01 1814 | 70 | 90 | 10 | 0.6 | 11 | 20.4 | 0.3 |
SX 01 1818 | 90 | 115 | 13 | 1 | 18.3 | 36.5 | 0.4 |
SX 01 1820 | 100 | 125 | 13 | 1 | 19.4 | 40.5 | 0.5 |
SX 01 1824 | 120 | 150 | 16 | 1 | 27 | 59 | 0.8 |
SX 01 1828 | 140 | 175 | 18 | 1.1 | 45 | 96 | 1.1 |
SX 01 1832 | 160 | 200 | 20 | 1.1 | 48 | 111 | 1.7 |
SX 01 1836 | 180 | 225 | 22 | 1.1 | 69 | 153 | 2.3 |
SX 01 1840 | 200 | 250 | 24 | 1.5 | 72 | 170 | 3.1 |
SX 01 1848 | 240 | 300 | 28 | 2 | 105 | 255 | 5.3 |
SX 01 1860 | 300 | 380 | 28 | 2.1 | 173 | 425 | 12 |
SX 01 1868 | 340 | 420 | 38 | 2.1 | 185 | 485 | 13.5 |
SX 01 1880 | 400 | 500 | 46 | 2.1 | 275 | 720 | 24 |
SX 01 18/500 | 500 | 620 | 56 | 3 | 395 | 1100 | 44 |
