Description:
INA High Precision Series XV

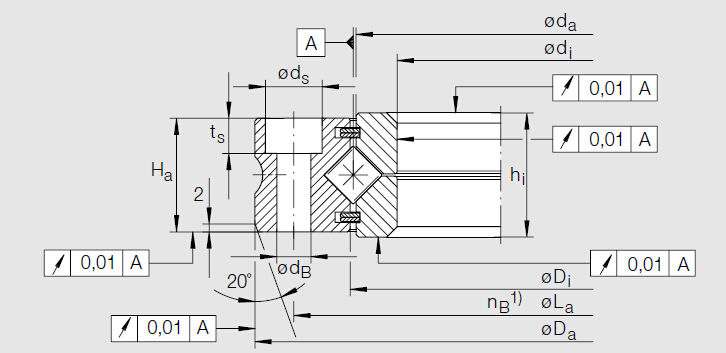

Crossed Roller Bearings INA XV series, Integrated outer ring with mounting holes, Two-piece inner ring, to be screwed mounted through the outer ring to the adjacent construction(the inner ring is located by means of a locknut) and can be adjusted very precisely to give clearance or preload by means of the locknut. Metal anti-rust fixed ring on both inner and outer rings. This design not only prevent dust but also ensure the outer ring and inner ring integrated. Easy handle, it is used in locations where the rotational accuracy of the outer ring is required.
▲ The design’s of all these Crossed Roller Bearings XV series are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.
Parameters
Designation | Boundary Dimensions(mm) | Basic Load ratings(KN) | Weight (kg) | ||||||||||
d | D | B | C | D1 | n1 | d1 | d11 | t1 | rs | Cr | Cor | ||
XV 30 | 30 | 75 | 15 | 14 | 60 | 12 | 4.6 | 8 | 4.6 | 2X20° | 7.4 | 10.4 | 0.37 |
XV 40 | 40 | 85 | 15 | 14 | 70 | 12 | 4.6 | 8 | 4.6 | 2X20° | 8.7 | 13.8 | 0.44 |
XV 50 | 50 | 100 | 17 | 16 | 85 | 12 | 5.6 | 10 | 5.4 | 2X20° | 13.1 | 21.5 | 0.67 |
XV 60 | 60 | 110 | 17 | 16 | 95 | 16 | 5.6 | 10 | 5.4 | 2X20° | 14.4 | 25.5 | 0.75 |
XV 70 | 70 | 120 | 17 | 16 | 105 | 16 | 5.6 | 10 | 5.4 | 2X20° | 15.1 | 28 | 0.84 |
XV 80 | 80 | 135 | 19 | 18 | 120 | 16 | 6.6 | 11 | 6.4 | 2X20° | 21.4 | 40.5 | 1.18 |
XV 90 | 90 | 145 | 19 | 18 | 130 | 16 | 6.6 | 11 | 6.4 | 2X20° | 22.3 | 44.5 | 1.29 |
XV 100 | 100 | 170 | 23 | 22 | 150 | 16 | 9 | 15 | 8.5 | 2X20° | 34.4 | 65 | 2.31 |
XV 110 | 110 | 180 | 23 | 22 | 160 | 16 | 9 | 15 | 8.5 | 2X20° | 36.2 | 72 | 2.48 |
