Description:
INA High Precision Series XSU 08 Crossed Roller Bearings
Crossed roller bearings XSU 08 are preloaded and screw mounted by means of the bearing rings directly on the adjacent construction. Series XSU 08 Crossed Roller Bearings from LYNBC have conducted cylindrical rollers to DIN 5402, spacers made from plastic and centered on the inside and outside diameter, sealed on both sides, and for operating temperatures from -30℃ to +80℃, have two lubrication nipples radially and two lubrication nipples axially.
▲ The design’s of all these Crossed Roller Bearings XSU series are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.
Parameters

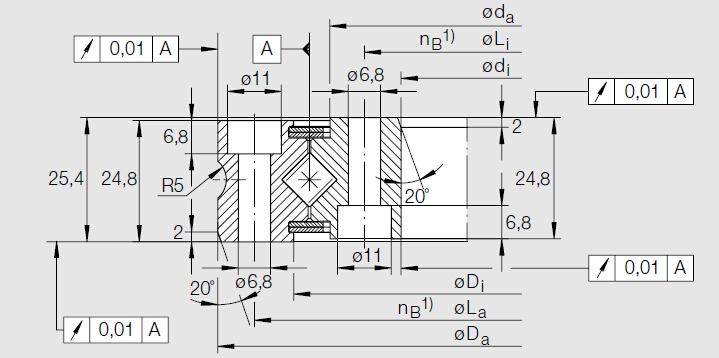

Designation | Boundary Dimensions(mm) | Basic Load ratings(KN) | Weight (kg) | |||||||||
Da | di | H | Di | da | La | Li | nB | rs | Cr | Cor | ||
XSU 080168 | 205 | 130 | 25.4 | 174 | 159 | 190 | 145 | 12 | 2X20° | 42 | 96 | 3.3 |
XSU 080188 | 225 | 150 | 25.4 | 194 | 179 | 210 | 165 | 16 | 2X20° | 46 | 110 | 3.7 |
XSU 080218 | 255 | 180 | 25.4 | 224 | 209 | 240 | 195 | 20 | 2X20° | 49 | 127 | 4.3 |
XSU 080258 | 295 | 220 | 25.4 | 264 | 249 | 280 | 235 | 24 | 2X20° | 54 | 151 | 5.1 |
XSU 080318 | 355 | 280 | 25.4 | 324 | 309 | 340 | 295 | 28 | 2X20° | 59 | 185 | 6.3 |
XSU 080398 | 435 | 360 | 25.4 | 404 | 389 | 420 | 375 | 36 | 2X20° | 68 | 236 | 7.8 |
