XSU 14-Sealed on Both Side

Description:

INA High Precision Series XSU 14 Crossed Roller Bearings

Crossed roller bearings XSU 14 are preloaded and screw mounted by means of the bearing rings directly on the adjacent construction. It also have been available with internal or external gear teeth.Series XSU 14 Crossed Roller Bearings from LYNBC have conducted cylindrical rollers to DIN 5402, spacers made from plastic and centered on the inside and outside diameter, sealed on both sides, and for operating temperatures from -30℃ to +80℃.

▲ The design’s of all these Crossed Roller Bearings XSU series are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters

Designation	Boundary Dimensions(mm)										Basic Load ratings(KN)		Weight (kg)

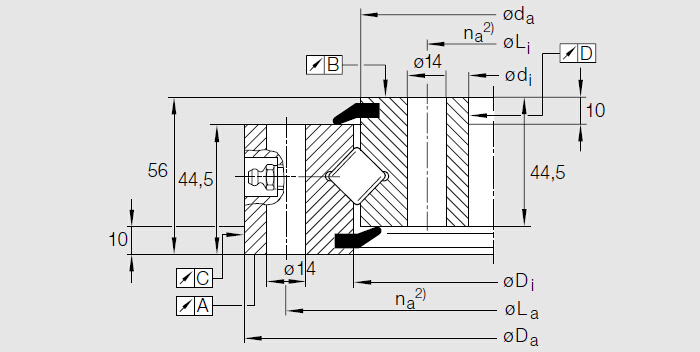

Designation	Da	di	H	Di	da	La	nB	Li	ni	rs	Cr	Cor	Weight (kg)
XSU 14 0414	484	344	56	415	413	460	24	368	24	2X20°	146	250	28
XSU 14 0544	614	474	56	545	543	590	32	498	32	2X20°	170	330	38
XSU 14 0644	714	574	56	645	643	690	36	598	36	2X20°	185	395	44
XSU 14 0744	814	674	56	745	743	790	40	698	40	2X20°	200	455	52
XSU 14 0844	914	774	56	845	843	890	40	798	40	2X20°	215	510	60
XSU 14 0944	1014	874	56	945	943	990	44	898	44	2X20°	227	580	67
XSU 14 1094	1164	1024	56	1095	1093	1140	48	1048	48	2X20°	246	670	77
