Three-Row Cylindrical Roller Slewing Bearing(No Gear)

Description:

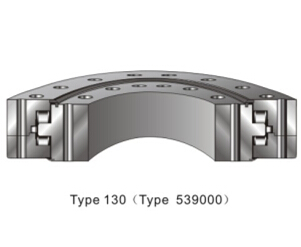

Three-row Cylindrical Roller Slewing Bearing

The LYNBC three-row cylindrical roller slewing bearing can carry axial load, tilting moment, and radial load at the same time. Compared to cross-cylindrical roller slewing bearing, the load of each roller is reduced. Point contact is changed into line contact. Compared with that of a double row ball slewing bearing, and the contact stresses are also decreased. Therefore, the load capacity of this design of slewing baring is the highest under the conditions of a bearing with the same boundary dimension. Axial load and radial load for this design are loaded by different rollers, in which the axial load and tilting moment are loaded by two groups of horizontal placed rollers, the radial load is loaded by one group of vertical placed rollers.

LYNBC three-row cylindrical roller slewing bearing mainly consists of the components such as inner ring, outer ring, three rows of rollers, cage (spacing blocks), and a seal device etc.

The design applications where there is a large axial load, tilting moment, a larger radial load, or a low requirement for friction moment.

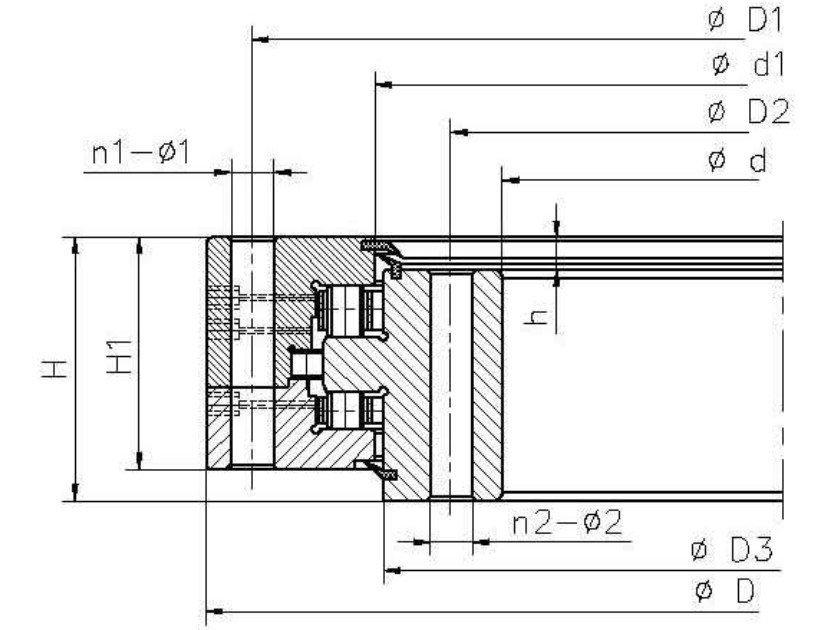

The basic structure of LYNBC three-row cylindrical roller slewing bearing as below:

Without gear

External gear

Internal gear

▲ The design’s of all these slewing bearing are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters

TRIPLE~2.JPG TRIPLE~1.JPG

Designation	Boundary Dimension			Mounting Hole Size						Basic load ratings		Mass
LYC	D	d	H	D1	D2	n1	n2	φ1	φ2	Coa(10KN)	Cor(10KN)	(Kg)
130.25.500	634	366	148	598	402	24	24	18	18	275	35.5	224
130.25.560	694	426	148	658	462	24	24	18	18	308	39.9	240
130.25.630	764	496	148	728	532	28	28	18	18	345	45.1	270
130.25.710	844	576	148	808	612	28	28	18	18	388	51.7	300
130.32.800	964	636	282	920	680	36	36	22	22	549	712	500
130.32.900	1064	736	182	1020	780	36	36	22	22	619	80.8	600
130.32.1000	1164	836	182	1120	880	40	40	22	22	689	90.3	680
130.32.1120	1284	956	182	1240	1000	40	40	22	22	768	102	820
130.40.1250	1445	1055	220	1393	1107	45	45	26	26	1110	146	1200
130.40.1400	1595	1205	220	1543	1257	45	45	26	26	1240	165	1300
130.40.1600	1795	1405	220	1743	1457	48	48	26	26	1420	190	1520
130.40.1800	1995	1605	220	1943	1657	48	48	26	26	1590	215	1750
130.45.2000	2195	1816	150	2127	1885	60	60	33	33	1690	66.3	1120
130.45.2240	2461	2019	231	2395	2085	60	60	33	33	2310	268	2700
130.45.2500	2721	2279	231	2655	2345	72	72	33	33	2580	302	3000
130.45.2800	3021	2579	231	2955	2645	72	72	33	33	2880	339	3400
130.50.3150	3432	2868	270	3342	2958	72	72	45	45	3590	381	5000
130.50.3550	3832	3268	270	3742	3358	72	72	45	45	4040	431	5600
130.50.4000	4280	3718	270	4192	3808	80	80	45	45	4560	487	6400
130.50.4500	4782	4218	270	4692	4308	80	80	45	45	5445	580	6942
