Cross Cylindrical Roller Slewing Bearing

Description:

Cross Cylindrical Roller Slewing bearing

LYNBC cross cylindrical roller slewing bearing can carry axial load, tilting moment and radial load all at the same time. The design and application of the cross cylindrical roller slewing bearings are basically the same as those of the four point contact ball slewing bearing, except that the rolling elements are substituted from balls into rollers and the contact way between the rolling elements and rings is changed from point contact into line contact. Those changes allow for the carrying capacity to be increased, but the wear and the friction moment load are also increased.

LYNBC cross cylindrical roller slewing bearings are composed of a inner ring, outer ring, a single row of rollers, cages(spacer), and seal device etc.

In this design, their cylindrical rollers in axial direction is cross-distribution. The length-diameter ratio of cylindrical roller is less than1, It would cause slight movement when rollers running.

LYNBC cross cylindrical roller slewing bearing can carry different combined forces caused by axial load, tilting moment and radial load in different working condition. By adjusting the quantity of crossed rollers and contact angle.

There are integral and separate rings in the structure of LYNBC cross cylindrical roller slewing bearing. Cages or spacers are usually adopted within design in order to ease friction. Rollers and raceway contact.

This slewing bearing with a design of a full complement of rollers is mainly applied in the condition where a heavier axial load is the primary load, and the requirement for tilting moment and friction moment is not so high.

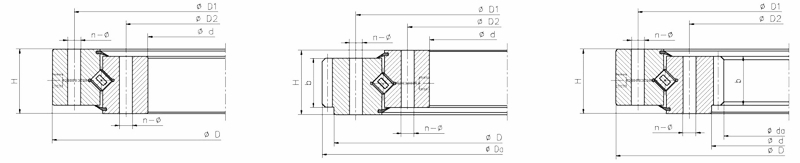

The basic structure of LYNBC cross cylindrical roller slewing bearing as below:

Without gear

External gear

Internal gear

▲ The design’s of all these slewing bearing are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters

Designation			Boundary Dimension			Mounting Hole Size				Gear Data							Basic load ratings	Mass
No Gear	External Gear	Internal Gear	D	d	H	D1	D2	n	Φ	m	Da	Z	da	Z	b	x	Coa(10KN)	(Kg)
110.25.500	111.25.500	113.25.500	602	398	75	566	434	20	18	5	630	123	365	74	60	0.5	104	80
	112.25.500	114.25.500	602	398	75	566	434	20	18	6	630	123	365	62	60	0.5	104	80
110.25.560	111.25.560	113.25.560	662	458	75	626	494	20	18	5	690	135	425	86	60	0.5	116	90
	112.25.560	114.25.560	662	458	75	626	494	20	18	6	690	112	426	112	60	0.5	116	90
110.25.630	111.25.630	113.25.630	732	528	75	696	564	24	18	6	774	126	492	83	60	0.5	130	100
	112.25.630	114.25.630	732	528	75	696	564	24	18	8	776	94	488	62	60	0.5	130	100
110.25.710	111.25.710	113.25.710	812	608	75	776	644	24	18	6	852	139	570	96	60	0.5	149	110
	112.25.710	114.25.710	812	608	75	776	644	24	18	8	856	104	568	72	60	0.5	149	110
110.28.800	111.28.800	113.28.800	922	678	82	878	722	30	22	8	968	118	632	80	65	0.5	185	170
	112.28.800	114.28.800	922	678	82	878	722	30	22	10	970	94	630	64	65	0.5	185	170
110.28.900	111.28.900	113.28.900	1022	778	82	978	822	30	22	8	1064	130	736	93	65	0.5	209	190
	112.28.900	114.28.900	1022	778	82	978	822	30	22	10	1070	104	730	74	65	0.5	209	190
110.28.1000	111.28.1000	113.28.1000	1122	878	82	1078	922	36	22	10	1190	116	820	83	65	0.5	233	210
	112.28.1000	114.28.1000	1122	878	82	1078	922	36	22	12	1188	96	816	69	65	0.5	233	210
110.28.1120	111.28.1120	113.28.1120	1242	998	82	1198	1042	36	22	10	1300	127	940	95	65	0.5	262	230
	112.28.1120	114.28.1120	1242	998	82	1198	1042	36	22	12	1308	106	936	79	65	0.5	262	230
110.32.1250	111.32.1250	113.32.1250	1390	1110	91	1337	1163	40	26	12	1452	118	1044	88	75	0.5	321	350
	112.32.1250	114.32.1250	1390	1110	91	1337	1163	40	26	14	1456	101	1036	75	75	0.5	321	350
110.32.1400	111.32.1400	113.32.1400	1540	1260	91	1487	1313	40	26	12	1608	131	1188	100	75	0.5	358	400
	112.32.1400	114.32.1400	1540	1260	91	1487	1313	40	26	14	1610	112	1190	86	75	0.5	358	400
110.32.1600	111.32.1600	113.32.1600	1740	1460	91	1687	1513	45	26	14	1820	127	1386	100	75	0.5	412	440
	112.32.1600	114.32.1600	1740	1460	91	1687	1513	45	26	16	1824	111	1376	87	75	0.5	412	440
110.32.1800	111.32.1800	113.32.1800	1940	1660	91	1887	1713	45	26	14	2016	141	1568	113	75	0.5	460	500
	112.32.1800	114.32.1800	1940	1660	91	1887	1713	45	26	16	2016	123	1568	99	75	0.5	460	500
110.40.2000	111.40.2000	113.40.2000	2178	1825	112	2110	1891	48	33	16	2272	139	1728	109	90	0.5	686	900
	112.40.2000	114.40.2000	2178	1825	112	2110	1891	48	33	18	2268	123	1728	97	90	0.5	686	900
110.40.2240	111.40.2240	113.40.2240	2418	2065	112	2350	2131	48	33	16	2496	153	1984	125	90	0.5	764	1000
	112.40.2240	114.40.2240	2418	2065	112	2350	2131	48	33	18	2502	136	1980	111	90	0.5	764	1000
110.40.2500	111.40.2500	113.40.2500	2678	2325	112	2610	2391	56	33	18	2772	151	2232	125	90	0.5	797	876
	112.40.2500	114.40.2500	2678	2325	112	2610	2391	56	33	20	2780	136	2220	112	90	0.5	797	876
110.40.2800	111.40.2800	113.40.2800	2978	2625	112	2910	2691	56	33	18	3078	168	2520	141	90	0.5	960	1250
	112.40.2800	114.40.2800	2978	2625	112	2910	2691	56	33	20	3080	151	2520	127	90	0.5	960	1250
110.50.3150	111.50.3150	113.50.3150	3376	2922	134	3286	3014	56	45	20	3480	171	2820	142	110	0.5	1380	2150
	112.50.3150	114.50.3150	3376	2922	134	3286	3014	56	45	22	3476	155	2816	129	110	0.5	1380	150
110.50.3550	111.50.3550	113.50.3550	3776	3322	134	3686	3414	56	45	20	3880	191	3220	162	110	0.5	1570	2470
	112.50.3550	114.50.3550	3776	3322	134	3686	3414	56	45	22	3894	174	3212	147	110	0.5	1570	2470
110.50.4000	111.50.4000	113.50.4000	4226	3772	134	4136	3864	60	45	22	4334	194	3652	167	110	0.5	1760	2800
	112.50.4000	114.50.4000	4226	3772	134	4136	3864	60	45	25	4350	171	3650	147	110	0.5	1760	2800
110.50.4500	111.50.4500	113.50.4500	4726	4272	134	4636	4364	60	45	22	4940	217	4158	190	110	0.5	1980	3100
	112.50.4500	114.50.4500	4726	4272	134	4636	4364	60	45	25	4850	191	4150	167	110	0.5	1980	3100
No Gear	External Gear	Internal Gear	D	d	H	D1	D2	n	Φ	m	Da	Z	da	Z	b	x	Coa(10KN)	(Kg)
Designation			Boundary Dimension			Mounting Hole Size				Gear Data							Basic load ratings	Mass
