Four Point Contact Ball Slewing Bearing(Light Series)-Internal Gear

Description:

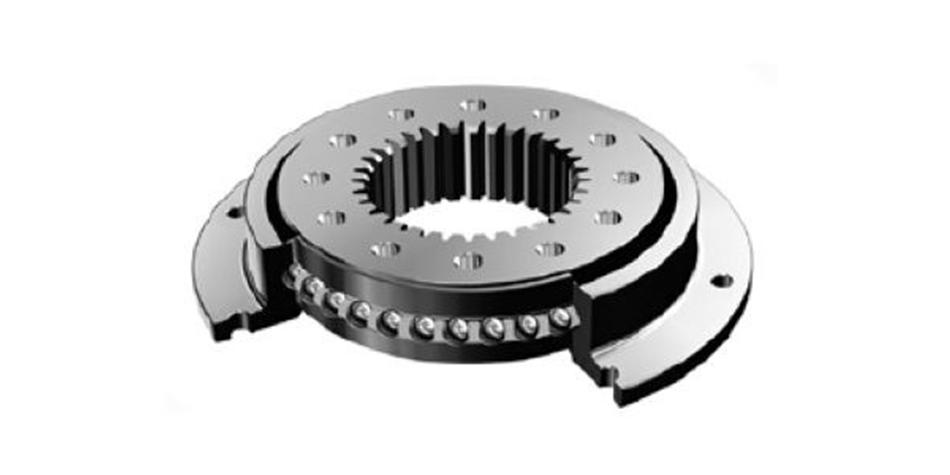

Four point contact ball bearings light series (Internal Gear teeth type)

Light series four point contact slewing rings are designed as units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacer, contact seals and lubrication nipples. And also have gear teeth on the outer ring, inner ring or without gear teeth. In addition to have bearing rings with through holes or threaded holes for fixing screws.

Specially, Slewing bearing with internal gear teeth have outer ring in the form of an L-section ring, balls in accordance with Din 5 401, plastic spacers, lubrication nipple on the circumference of the ring without gear teeth. LYNBC can product light series four point contact ball slewing bearing with rolling element pitch circle diameter from 400 mm to 8000 mm.

▲ The design’s of all these slewing bearing are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

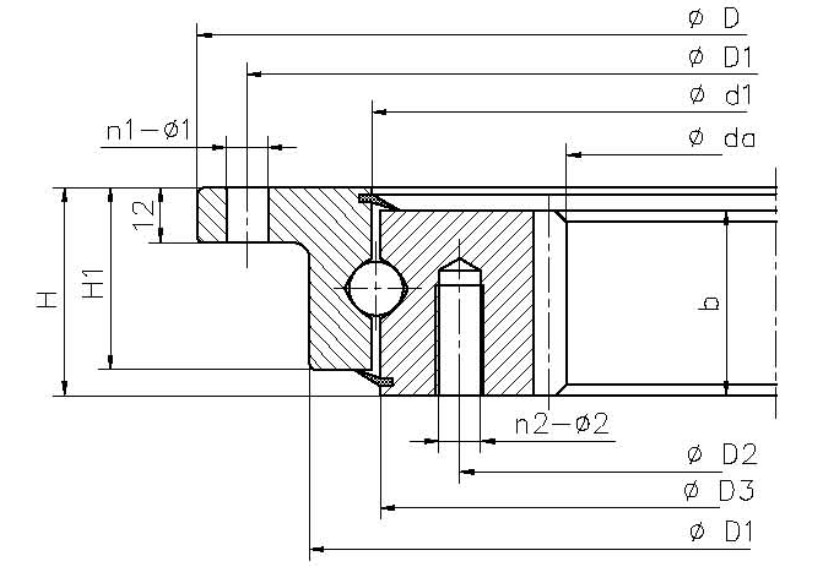

Parameters

Designation			Boundary Dimension				Mounting Hole Size						Gear Data				Basic load ratings	Mass
INA	Rothe Erde	TG	da	D	d	H	D1	D2	n1	n2	φ1	φ2	m	Z	do	x	Coa(KN)	(Kg)
VLI200414N ZT			325	518	350	56	490	375	8	12	φ18	M12	5	67	335	0	600	28.5
VLI 20 0414N ZT RL2			325	516	350	56	490	375	8	12	φ18	M12	5	67	335	0	300	36.3
VLI200414N			325	518	350	56	490	375	8	12	18	M12	5	67	335	0	295	27.5
	232.20.0400.013		326.5	518		56	490	375	8	12	18	M12	5	67	335	0	250	27.1
	232.20.0400.503		326.5	518		56	490	375	16	12	18	M12	5	67	335	0	250	26.9
	232.21.0475.013		326.5	517		56	490	375	8	12	8	M12	5	67	335	0	250	27.1
		I.505.20.00.C	326.5	518		56	490	375	8	12	φ18	M12	5	67	335	0	500	35.4
VLI200544N ZT			444	648		56	620	505	10	16	φ18	M12	6	76	456	0	790	40.6
VLI200544N			444	648		56	620	505	10	16	18	M12	6	76	456	0	385	38
	232.20.0500.013		445.2	648		56	620	505	10	16	18	M12	6	76	456	0	330	36.9
	232.20.0500.503		445.2	648		56	620	505	20	16	18	M12	6	76	456	0	330	36.7
	232.21.0575.013		445.2	647		56	620	505	10	16	18	M12	6	76	456	0	330	36.9
		I.650.20.00.C	445.2	648		56	620	505	10	16	φ18	M12	6	76	456	0	700	40.2
VLI200644N ZT			546	748		56	720	605	12	18	φ18	M12	6	93	558	0	900	47.4
VLI200644N			546	748		56	720	605	12	18	18	M12	6	93	558	0	455	45
	232.20.0600.013		547.2	748		56	720	605	12	18	18	M12	6	93	558	0	390	43.7
	232.20.0600.503		547.2	748		56	720	605	24	18	18	M12	6	93	558	0	390	43.4
	232.21.0675.013		547.2	747		56	720	605	12	18	18	M12	6	93	558	0	390	43.7
		I.750.20.00.C	547.2	748		56	720	605	12	18	φ18	M12	6	93	558	0	780	53.3
VLI200744N ZT			648	848		56	820	705	12	20	φ18	M12	6	110	660	0	530	54
VLI200744N			648	848		56	820	705	12	20	18	M12	6	110	660	0	530	51.5
	232.20.0700.013		649.2	848		56	820	705	12	20	18	M12	6	110	660	0	450	51.1
	232.20.0700.503		649.2	848		56	820	705	24	20	18	M12	6	110	660	0	450	50.8
	232.21.0775.013		649.2	847		56	820	705	12	20	18	M12	6	110	660	0	450	51.1
		I.850.20.00.C	649.2	848		56	820	705	12	20	φ18	M12	6	110	660	0	910	63.1
VLI200844N ZT			736	948		56	920	805	14	20	φ18	M12	8	94	752	0	1200	65.2
VLI200844N			736	948		56	920	805	14	20	18	M12	8	94	752	0	600	61.5
	232.20.0800.013		737.6	948		56	920	805	14	20	18	M12	8	94	752	0	510	61.6
	232.20.0800.503		737.6	948		56	920	805	28	20	18	M12	8	94	752	0	510	61.3
	232.21.0875.013		737.6	947		56	920	805	14	20	18	M12	8	94	752	0	510	61.6
		I.950.20.00.C	737.6	948		56	920	805	14	20	φ18	M12	8	94	752	0	1030	76.6
VLI300955N			810	1100		90	1060	894	30	30	22	M20	10	83	830	0	2550	164
	282.30.0900.013		812	1100		90	1060	894	30	30	22	M20	10	83	830	0	1750	159
	282.30.0975.013		812	1098		90	1060	894	30	30	22	M20	10	83	830	0	1750	159
		I.1100.32.00.C	812	1100		90	1060	894	30	30	φ12	M20	10	83	830	0	2250	159
VLI200944N ZT			840	1048		56	1020	905	16	22	φ18	M12	8	107	856	0	1350	71
VLI200944N			840	1048		56	1020	905	16	22	18	M12	8	107	856	0	670	67.5
	232.20.0900.013		841.6	1048		56	1020	905	16	22	18	M12	8	107	856	0	570	65.8
	232.20.0900.503		841.6	1048		56	1020	905	32	22	18	M12	8	107	856	0	570	65.4
	232.21.0975.013		841.6	1047		56	1020	905	16	22	18	M12	8	107	856	0	570	65.8
		I.1050.20.00.C	841.6	1048		56	1020	905	16	22	φ18	M12	8	107	856	0	1440	79.8
VLI301055N			910	1200		90	1160	994	30	30	22	M20	10	93	930	0	2800	181
	282.30.1000.013		912	1200		90	1160	994	30	30	22	M20	10	93	930	0	1840	176
	282.30.1075.013		912	1198		90	1160	994	30	30	22	M20	10	93	930	0	1840	176
		I.1200.32.00.C	912	1200		90	1160	994	30	30	φ12	M20	10	93	930	0	2500	176
VLI201094N ZT			984	1198		56	1170	1055	16	24	φ18	M12	8	125	1000	0	2000	80
VLI201094N			984	1198		56	1170	1055	16	24	18	M12	8	125	1000	0	770	81.5
	232.20.1000.013		985.6	1198		56	1170	1055	16	24	18	M12	8	125	1000	0	665	80.7
	232.20.1000.503		985.6	1198		56	1170	1055	32	24	18	M12	8	125	1000	0	665	80.3
	232.21.1075.013		985.6	1197		56	1170	1055	16	24	18	M12	8	125	1000	0	665	80.7
		I.1200.20.00.C	985.6	1198		56	1170	1055	16	24	φ18	M12	8	125	1000	0	1700	101
VLI301155N			1010	1300		90	1260	1094	36	36	22	M20*40	10	103	1030	0	3100	198
	282.30.1100.013		1012	1300		90	1260	1094	36	36	22	M20	10	103	1030	0	1900	192
	282.30.1175.013		1012	1298		90	1260	1094	36	36	22	M20	10	103	1030	0	1900	192
		I.1300.32.00.C	1012	1300		90	1260	1094	36	36	φ12	M20	10	103	1030	0	2700	192
VLI301255N			1110	1400		90	1360	1194	42	42	22	M20*40	10	113	1130	0	3350	215
	282.30.1200.013		1112	1400		90	1360	1194	42	42	22	M20	10	113	1130	0	1950	208
	282.30.1275.013		1112	1398		90	1360	1194	42	42	22	M20	10	113	1130	0	1950	208
		I.1400.32.00.C	1112	1400		90	1360	1194	42	42	φ12	M20	10	113	1130	0	3000	208
VLI301355N			1210	1500		90	1460	1294	42	42	22	M20*40	10	123	1230	0	3600	233
	282.30.1300.013		1212	1500		90	1460	1294	42	42	22	M20	10	123	1230	0	2000	226
	282.30.1375.013		1212	1498		90	1460	1294	42	42	22	M20	10	123	1230	0	2000	226
		I.1500.32.00.C	1212	1500		90	1460	1294	42	42	φ12	M20	10	123	1230	0	3200	226
	282.30.1400.013		1310	1600		90	1560	1394	48	48	22	M20	10	133	1330	0	2050	243
	282.30.1475.013		1310	1598		90	1560	1394	48	48	22	M20	10	133	1330	0	2050	243
		I.1600.32.00.C	1310	1600		90	1560	1394	48	48	φ12	M20	10	133	1330	0	3380	243
VLI301455N			1310	1600		90	1560	1394	48	48	22	M20*40	10	133	1330	0	4000	251
INA	Rothe Erde	TG	da	D	d	H	D1	D2	n1	n2	φ1	φ2	m	Z	do	x	Coa(KN)	(Kg)
Designation			Boundary Dimension				Mounting Hole Size						Gear Data				Basic load ratings	Mass
