Four Point Contact Ball Slewing Bearing(VSI20 Series)

Description:

INA Four Point Contact Bearings Series VSI 20（Internal Gear Teeth Type）

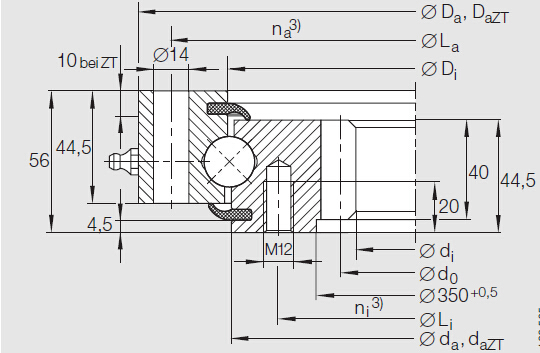

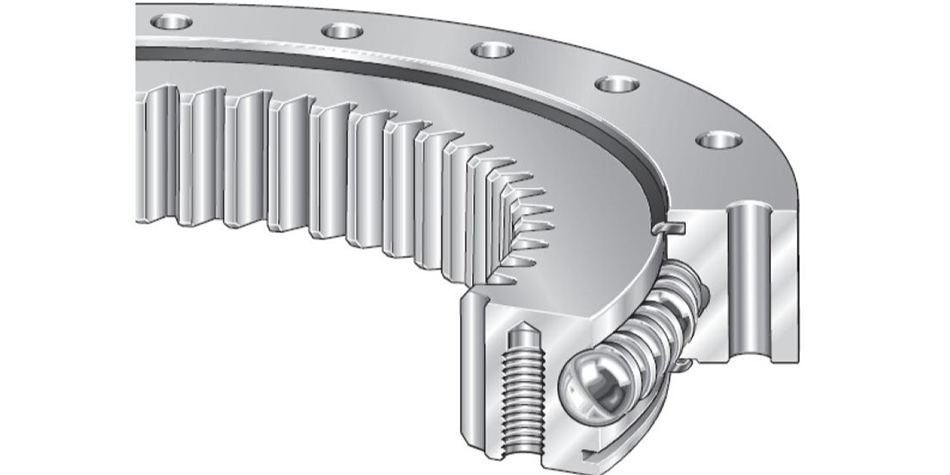

LYNBC Four Point Contact Bearing Series VSI 20 are units comprising inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples, with gear teeth on the inner ring. It has bearing outer rings with through holes and bearing inner rings threaded holes for fixing screws. Four Point Contact Bearings can support axial, radial and tilting moment loads, but cannot be subjected to load as high as crossed roller bearings.

▲   The design’s of all these Four Point Contact Bearings Series VSI 20 are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters
