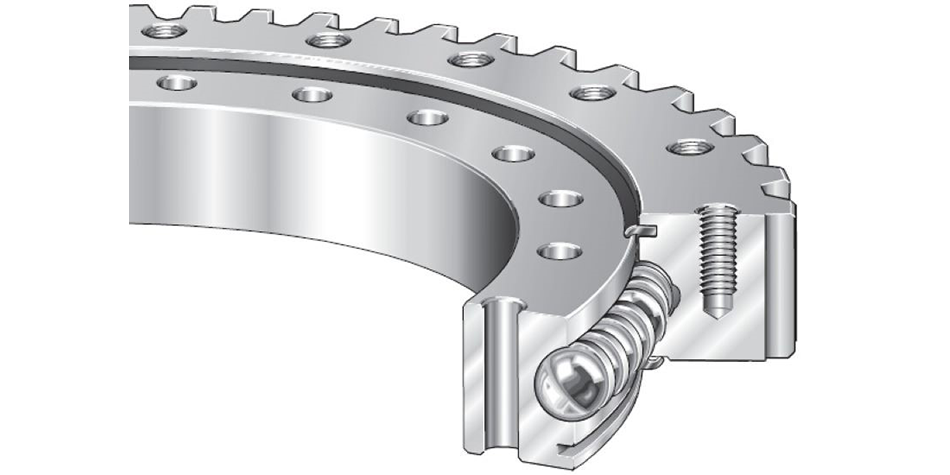

Four Point Contact Ball Slewing Bearing(VSA25 Series)

Description:

INA Four Point Contact Bearings Series VSA 25（External Gear Teeth Type）

LYNBC Four Point Contact Bearings Series VSA25 are units comprising inner and inner rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples,with gear teeth on the outer ring. It has bearing inner rings with through holes and bearing outer rings threaded holes for fixing screws. Four Point Contact Bearings can support axial, radial and tilting moment loads, but cannot be subjected to load as high as crossed roller bearings.

▲   The design’s of all these Four Point Contact Bearings Series VSA 25 are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

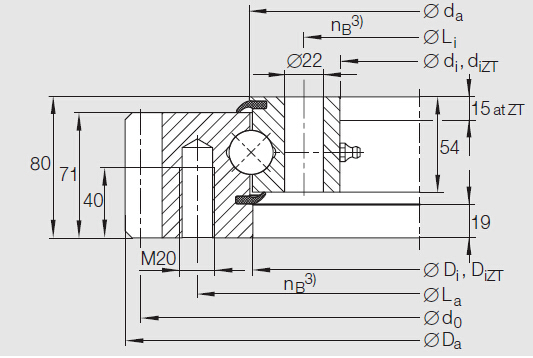

Parameters
