Cross Cylindrical Roller Slewing Bearing(XS Series)

Description:

INA crossed roller bearing Series XSI14 and XI （Internal Gear Teeth Type）

INA cross roller slewing bearings are sealed on both sides, lubricated with a high quality grease, can be relubricated via lubrication nipples and are particularly easy to fit. The bearing rings are supplied without gear teeth, in order to achieve simple drive solutions, are available with external or internal gear teeth. INA crossed roller bearings are designed as these preloaded slewing rings can support higher loads than four point contact bearings. They have proved themselves particularly where bearings are subjected to high radial forces and moderate axial and tilting moment loads. Crossed roller slewing bearings are suitable for applications with uniform free from stick-slip, low rotational resistance and high requirements for axial and radial runout accuracy and rigidity, for example in robots, handling systems and machine tools.

▲ The design’s of all these slewing bearing are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters

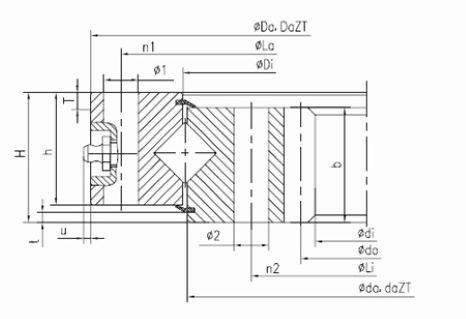

Designation	Boundary Dimension			Mounting Hole Size						Gear Data					Basic load ratings	Mass
INA	di	Da	H	La	Li	n1	n2	φ1	φ2	m	Z	b	do	x	Coa(10KN)	(Kg)
XI 120288N	216	340	38	324	252	20	20	9	9	4	56	34	224		34	12

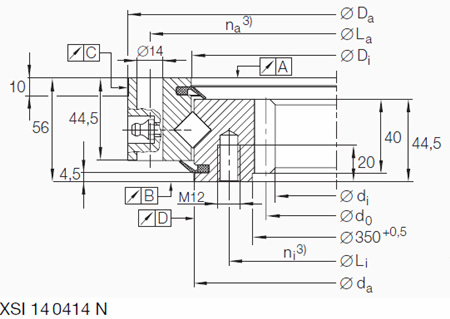

XSI 140414N	325	484	56	460	375	24	24	14	M12*20	5	67	40	335		52	31
XI 120420N	332	486	38	462	378	16	16	14	14	4	85	34	340		50	24
XI 160489N	384	562	45	538	440	40	40	14	14	6	66	40	396		71	35
XSI 140544N	444	614	56	590	505	32	32	14	M12*20	6	76	44.5	456		68	43
XI 140575N	462	657	45	625	525	16	16	18	18	6	19	38	474		83	45
XI 180635N	504	722	54	690	580	24	24	18	18	8	65	47	520		104	65
XSI 140644N	546	714	56	690	605	36	36	14	M12*20	6	93	44.5	558		80	50
XI 300713N	560	817	80	785	640	52	52	18	18	10	58	73	580		198	130
XI 200720N	584	812	58	780	660	40	40	18	18	8	75	51	600		142	80
XSI 140744N	648	814	56	790	705	40	40	14	M12*20	6	110	44.5	660		93	58
XI 180865N	736	952	54	920	810	20	20	18	18	8	94	47	752		132.5	90
XSI 140844N	736	914	56	890	805	40	40	14	M12*20	8	94	44.5	752		105	69
XI 140897N	776	976	54	944	850	32	32	18	18	8	99	47	792		127	75
XSI 200955N	810	1055	80	1015	894	30	30	22	M20*40	10	83	71	830		203	148
XSI 140944N	840	1014	56	990	905	44	44	14	M12*20	8	107	44.5	856		117	76
XSI 201055N	910	1155	80	1115	994	30	30	22	M20*40	10	93	71	930		225	165
XI 301128N	936	1258	86	1210	1045	36	36	26	26	12	80	76	960		282.5	285
XI 201100N	950	1200	70	1160	1040	30	30	22	22	10	97	60	970		200	150
XI 141087N	960	1166	65	1134	1040	40	40	18	18	10	98	55	980		150	105
XI 241120N	960	1228	73	1188	1052	40	40	22	22	10	98	63	980		240	195
XI 221150N	984	1255	74	1215	1085	40	40	22	22	12	84	64	1008		242.5	200
XSI 141094N	984	1164	56	1140	1055	48	48	14	M12*20	8	125	44.5	1000		136	91
XSI 20 1155N	1010	1255	80	1215	1094	36	36	22	M20*40	10	103	71	1030		246	180
XI 261220N	1060	1330	78	1290	1150	48	48	22	22	10	108	68	1080		265	230
XSI 20 1255N	1110	1355	80	1315	1194	42	42	22	M20*40	10	113	71	1130		268.7	195
XI 301304N	1140	1416	86	1380	1228	76	76	20	20	10	116	76	1160		324	280
XI 401385N	1176	1528	110	1480	1290	56	56	26	26	12	100	100	1200		345	490
XI 301348N	1180	1465	86	1425	1270	60	60	22	22	10	120	76	1200		334	300
XSI 20 1355N	1210	1455	80	1415	1294	42	42	22	M20*40	10	123	71	1230		293.6	212
XI 301500N	1308	1630	86	1582	1418	48	48	26	26	12	111	76	1332		371	380
XSI 20 1455N	1310	1555	80	1515	1394	48	48	22	M20*40	10	133	71	1330		306	227
XI 341615N	1416	1753	95	1705	1525	64	64	26	26	12	120	85	1440		430	470
XI 301700N	1498	1830	92	1782	1618	56	56	26	26	14	109	82	1526		425	450
XI 341785N	1568	1923	95	1875	1695	72	72	26	26	14	114	85	1596		480	550
XI 401865N	1616	2024	108	1970	1760	68	68	30	30	16	103	98	1646		590	750
XI 401945N	1722	2088	110	2040	1850	48	48	26	26	14	125	100	1750		620	740
XI 201905N	1740	2010	82	1970	1840	48	48	22	22	12	147	72	1764		345	340
XI 02026N	1764	2184	122	2130	1921	72	72	30	30	18	100	108	1800		650	900
XI 452180N	1920	2355	127	2295	2065	64	64	33	33	16	122	113	1962		760	1090
XI 302280N	2072	2413	110	2365	2195	84	84	26	26	14	150	80	2100		590	760
XI 342540N	2286	2700	118	2640	2440	64	64	33	33	18	129	104	2322		675	1040
XI 452600N	2336	2775	127	2715	2485	76	76	33	33	16	148	113	2368		885	1330
XI 262686N	2480	2800	114	2760	2615	108	108	22	22	20	126	100	2520		580	740
XI 402875N	2628	3040	118	2980	2775	72	72	33	33	18	148	104	2664		935	1250
XI 302980N	2796	3100	109	3060	2900	160	160	22	22	12	235	95	2820		720	820
XI 453280N	3006	3455	127	3395	3165	96	96	33	33	18	169	113	3042		1155	1710
XI 503383N	3100	3565	138	3505	3260	116	116	33	33	20	157	124	3140		1440	1970
XI 343403N	3168	3560	110	3500	3305	80	80	33	33	16	200	96	3200		910	1290
XI 503500N	3200	3690	138	3630	3370	124	124	33	33	20	162	124	3240		1410	2170
XI 503720N	3420	3910	138	3850	3590	132	132	33	33	20	173	124	3460		1500	2310
XI 503820N	3520	4010	138	3950	3690	136	136	33	33	20	178	124	3560		1540	2370
XI 604035N	3720	4234	160	4174	3896	144	144	33	33	20	188	146	3760		1760	3100
INA	di	Da	H	La	Li	n1	n2	φ1	φ2	m	Z	b	do	x	Coa(10KN)	(Kg)
Designation	Boundary Dimension			Mounting Hole Size						Gear Data					Basic load ratings	Mass
