Cross Cylindrical Roller Slewing Bearing(XSU Series)

Description:

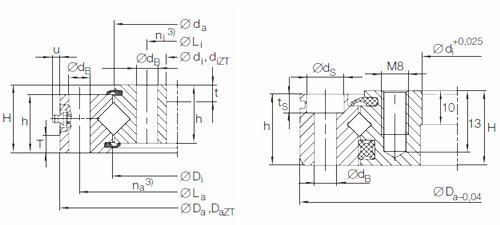

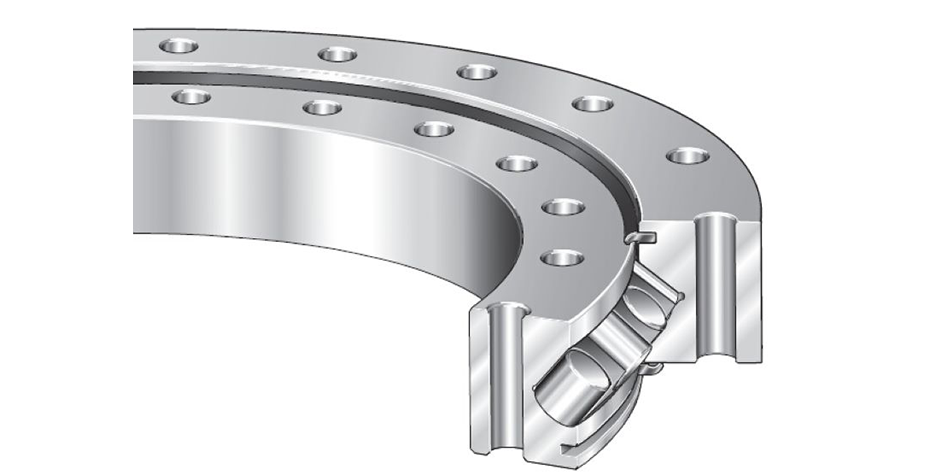

INA crossed roller bearing Series XSU and XU （Without Gear Teeth Type）

LYNBC would have produced crossed roller bearing Series XSU and XU with without gear teeth professionally. And it could support high radial loads and moderate axial loads and tilting moment loads, and also be suitable for supported and suspended loads. Crossed roller bearing series XSU and XU have contact seals on both sides that protect the raceway system against dust, contamination moisture. It also has cylindrical rollers to DIN 5402, spacers made from plastic and lubrication nipple on the circumference of the outer ring.

▲ The design’s of all these Crossed Roller Bearing Series XSU and XU are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Parameters

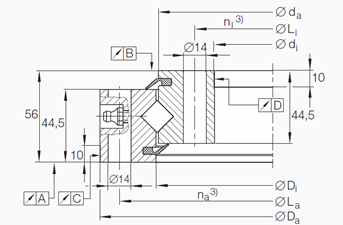

Designation	Boundary Dimension					Mounting Hole Size				Basic load ratings	Mass
INA	D_a	d_i	D_i	d_a	H	L_a	n_a	L_i	n_i	Coa(KN)	(Kg)
XSU 14 0414	484	344	415	413	56	460	24	368	24	520	28
XSU 14 0544	614	474	545	543	56	590	32	498	32	680	38
XSU 14 0644	714	574	645	643	56	690	36	598	36	800	44
XSU 14 0744	814	674	745	743	56	790	40	698	40	930	52
XSU 14 0844	914	774	845	843	56	890	40	798	40	1050	60
XSU 14 0944	1014	874	945	943	56	990	44	898	44	1170	67
XSU 14 1044	1164	1024	1095	1093	56	1140	48	1048	48	1360	77
XU 05 0077	112	40	77.5	74	22	97	6	56	6	14.3	1.4
XU 06 0094	140	57	94.6	93.4	26	120	6	70	6	20.7	2.4
XU 06 0111	145.79	76.2	111.8	--	15.87	133.1	8	88.9	8	22.8	1.2
XU 08 0120	170	69	120.6	119.4	30	148	6	90	6	35.5	4
XU 08 0149	196.85	101.6	149.6	--	22.22	177.8	16	115.8	16	40	3.6
XU 12 0179	234	124.5	180.2	178.2	35	214	12	144.5	12	75	7
